Physics-Based Control Lab (day 29)

Better control actions from physical models, compared fairly with PID and rules. Live at https://control.pinneapple.org. Source: apps/control_lab.

Simulation and recommendation only. This version has no command path to real equipment: it never writes to a controller, PLC or DCS.

Give the lab a dynamic model, the estimated state, objectives, constraints and actuator limits. The model is the heated tank's balances, or a reduced-order surrogate as a ModelRef. It runs each controller in closed loop on the same simulated plant, with the same noise and disturbances:

• linear MPC: successive linearisation and a QP;
• nonlinear MPC: CasADi + IPOPT, with a SciPy fallback;
• nonlinear MPC with the surrogate as its model;
• a two-loop PID with anti-windup;
• hysteresis rules.

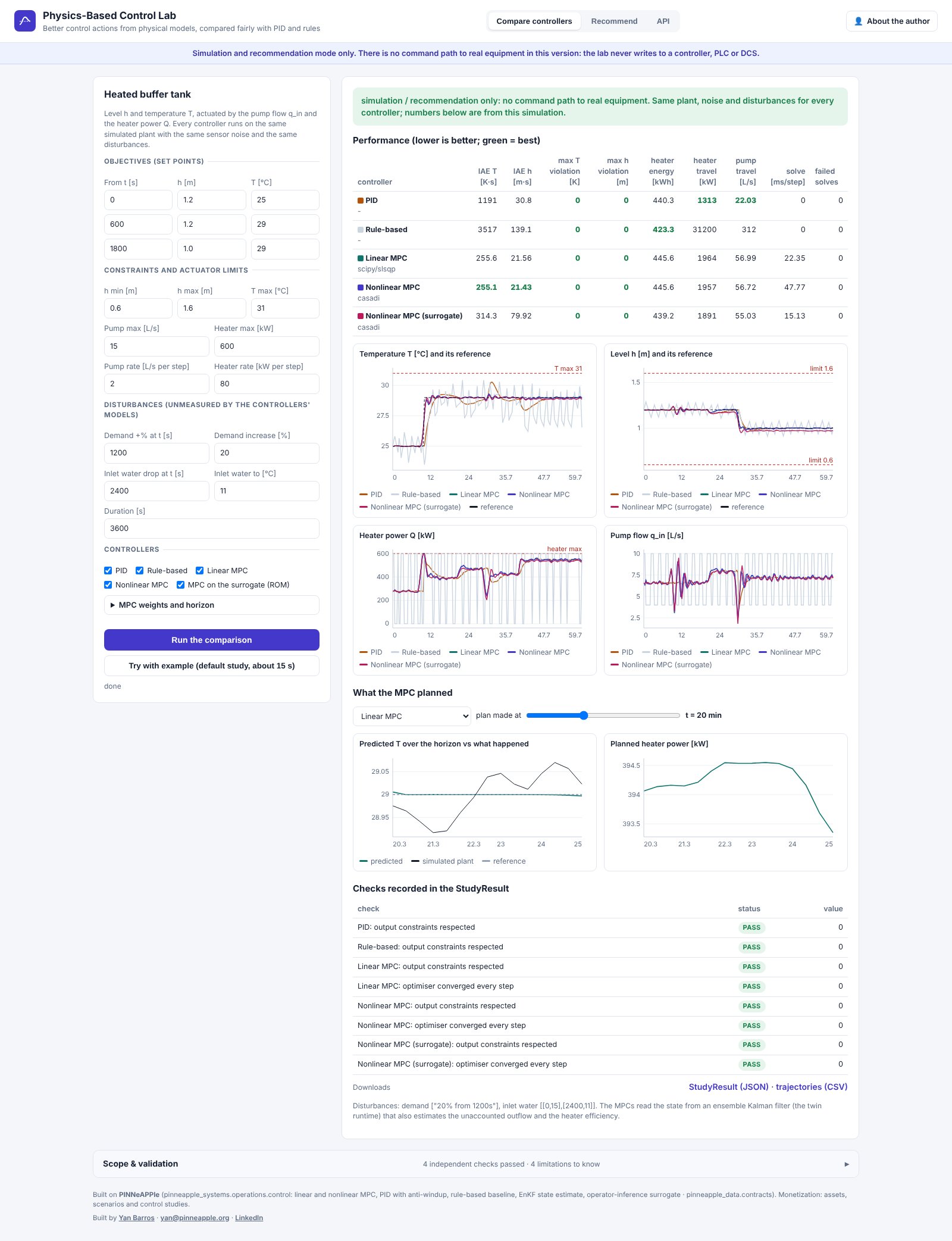

It reports tracking error, constraint violations, energy, actuator travel and solve time, plus what the MPC planned at any moment against what then happened.

In the default study, the MPCs reduce the temperature tracking error 4.7x compared with PID, with no constraint violation. They move the heater more, a trade-off set by the move weight. The surrogate MPC tracks the level worse because the ROM cannot see the unmeasured demand change.

Automate it

• POST /api/compare with spec, scenario and controllers returns a job. Downloads: control.study.json, trajectories.csv.

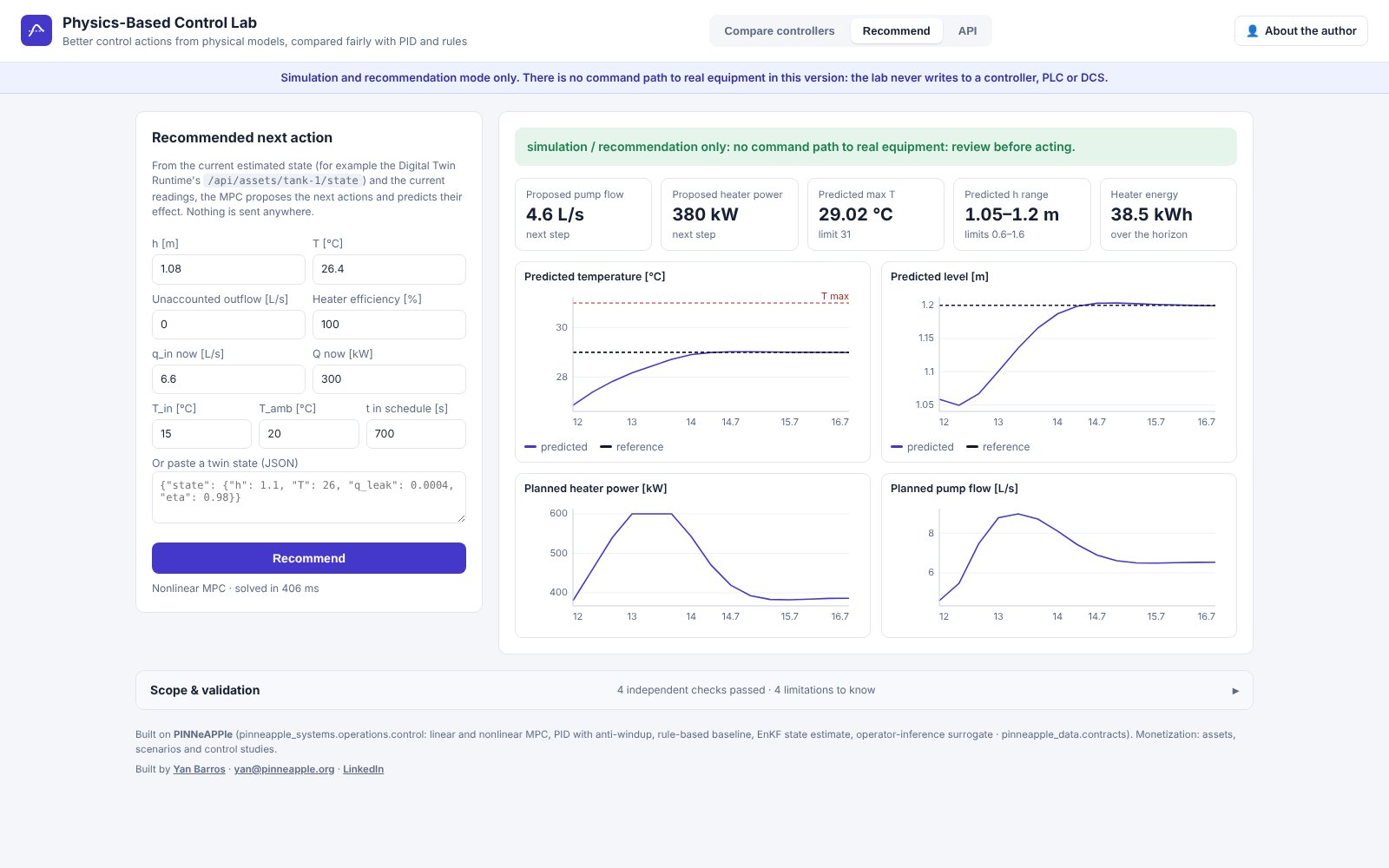

• POST /api/recommend with the Digital Twin Runtime's state and the current readings returns the proposed actions and their predicted effect.
• In Python, call pinneapple_systems.operations.control.compare_controllers and recommend.

Limits

• The plant is simulated, so model mismatch is smaller than on a real plant.
• The baselines are hand-tuned, not optimal.
• Output constraints are soft; actuator and rate limits are hard.
• There is no command path to equipment, by design.
