Reduced Order Model Lab (day 19)

Cheaper models of your simulations, with the error on held-out data in sight. Live at https://rom.pinneapple.org. Source: apps/rom_lab.

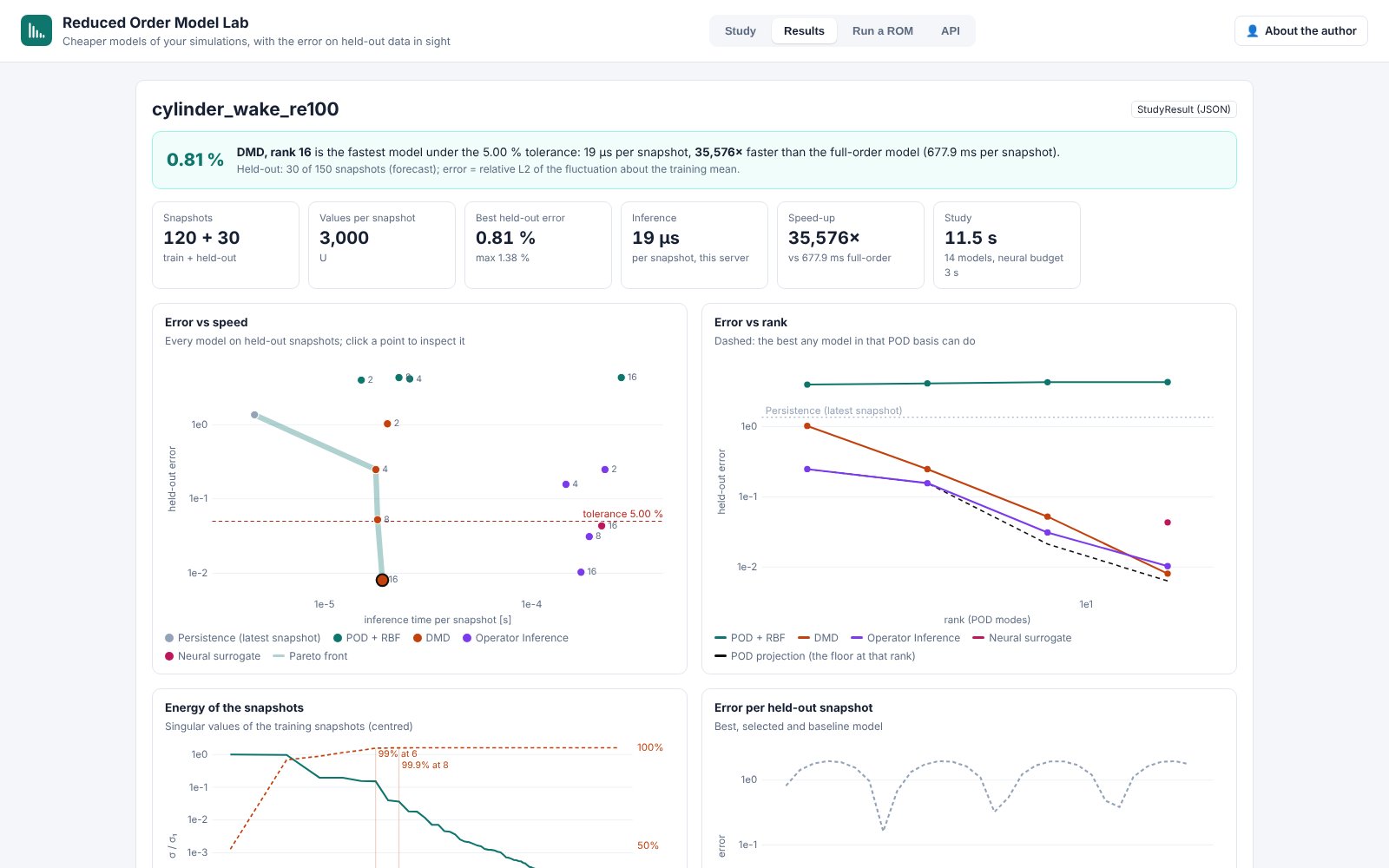

Cylinder wake: DMD rank 16 forecasts 30 held-out snapshots to 0.81 %

Upload snapshots of one mesh (OpenFOAM times, VTU/VTK/FRD series, NPZ/HDF5 arrays, a CSV/Parquet table). The lab fits POD + RBF, POD + GPR, DMD, Operator Inference and a neural surrogate at equal wall-clock budget, at several ranks, and scores each on snapshots it never saw: later times (a forecast), interleaved times, or unseen designs. It shows the energy of the singular values, error vs rank against the POD projection floor, error vs inference time with the Pareto front, the speed-up over the full-order model, and the reconstruction of any held-out snapshot.

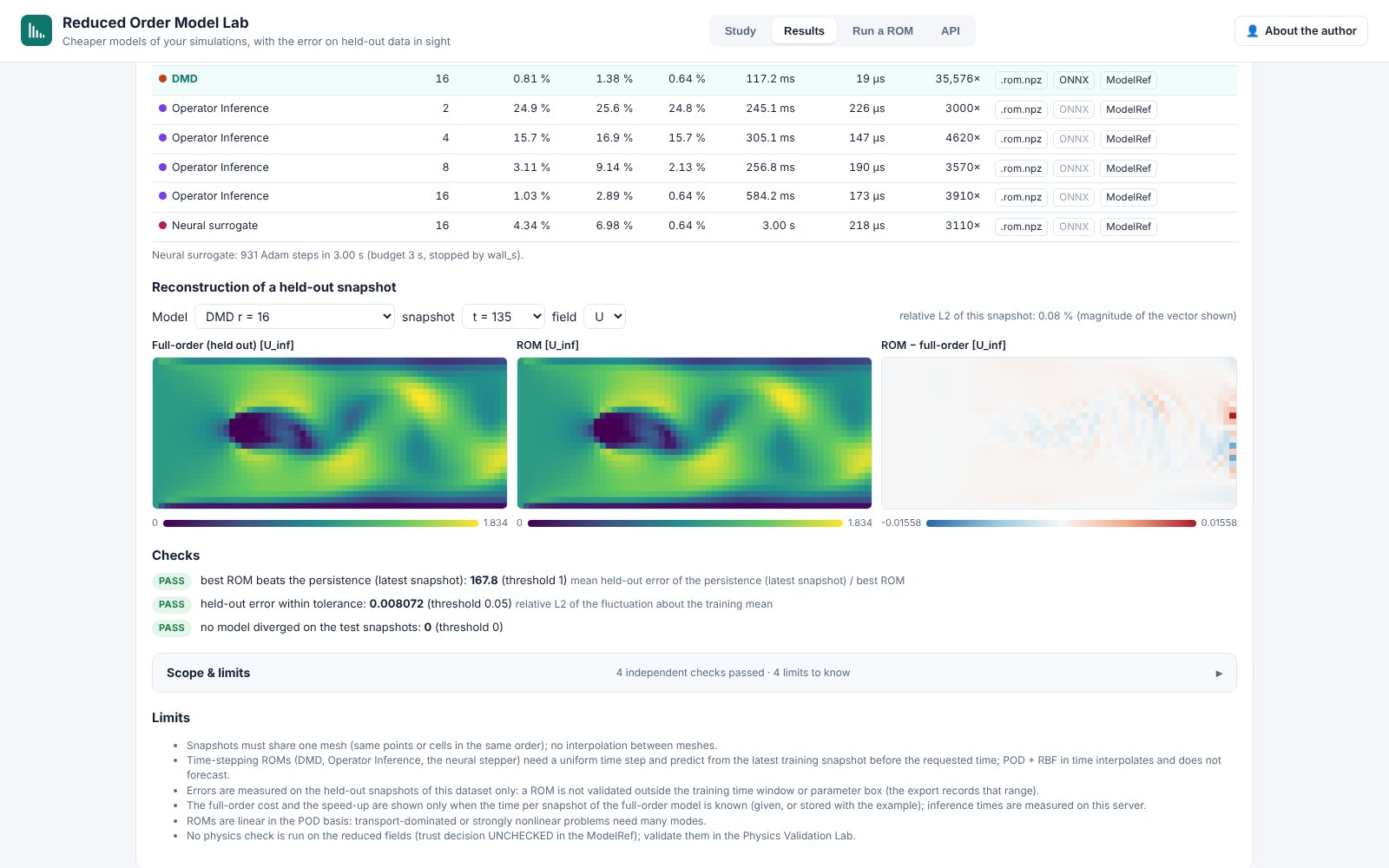

Reconstruction of a held-out snapshot: truth, ROM and their difference

Export and chain

  • .rom.npz: arrays and a JSON manifest, no pickle; ReducedModel.from_bytes(b).predict(times=...).
  • ONNX (POD + RBF, nearest, parametric neural, DMD) plus the spec for ModelGateway.publish(kind="onnx").
  • ModelRef per model (held-out metrics, split, training range, SHA-256) and a StudyResult for the study.

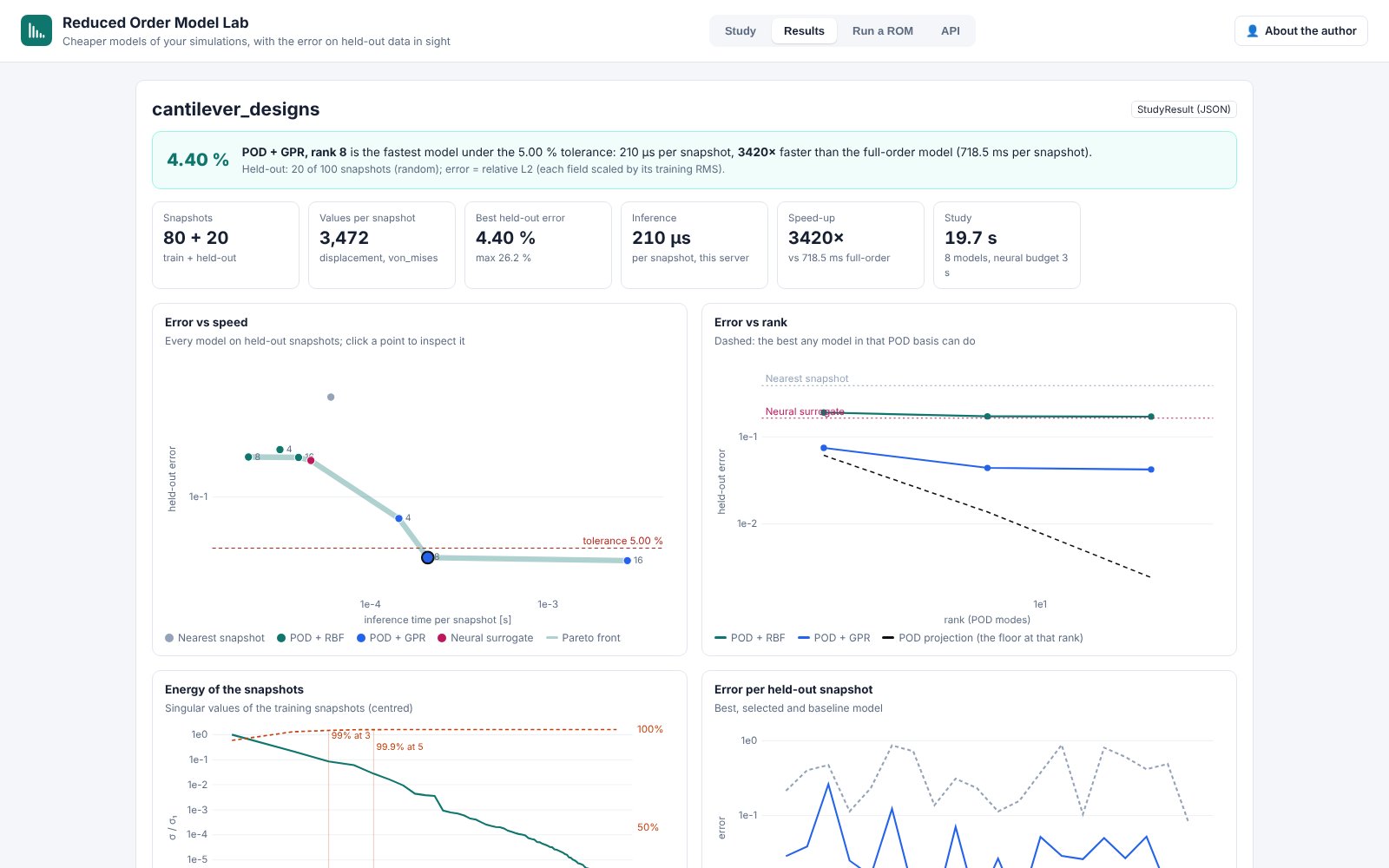

Cantilever design space: POD + GPR at 4.4 % on 20 unseen designs, against 39 % for the nearest design

The held-out design on its body (3-D)

When the snapshots carry a mesh (a VTU/VTK/FRD series, or arrays with cells_<type>), the result page shows the held-out snapshot on its own body: the full-order field, the ROM prediction and the pointwise error |ROM − FEM|, each with a colour bar, on the shape deformed by the FEM or the ROM displacement (scale factor, true scale, undeformed wire). The dataset's node sets are marked (the cantilever's clamp and loaded tip), with the error hotspots. A short text, computed from the two arrays only, says where the error concentrates and compares it with the study's number for that design and its mean over the held-out designs.

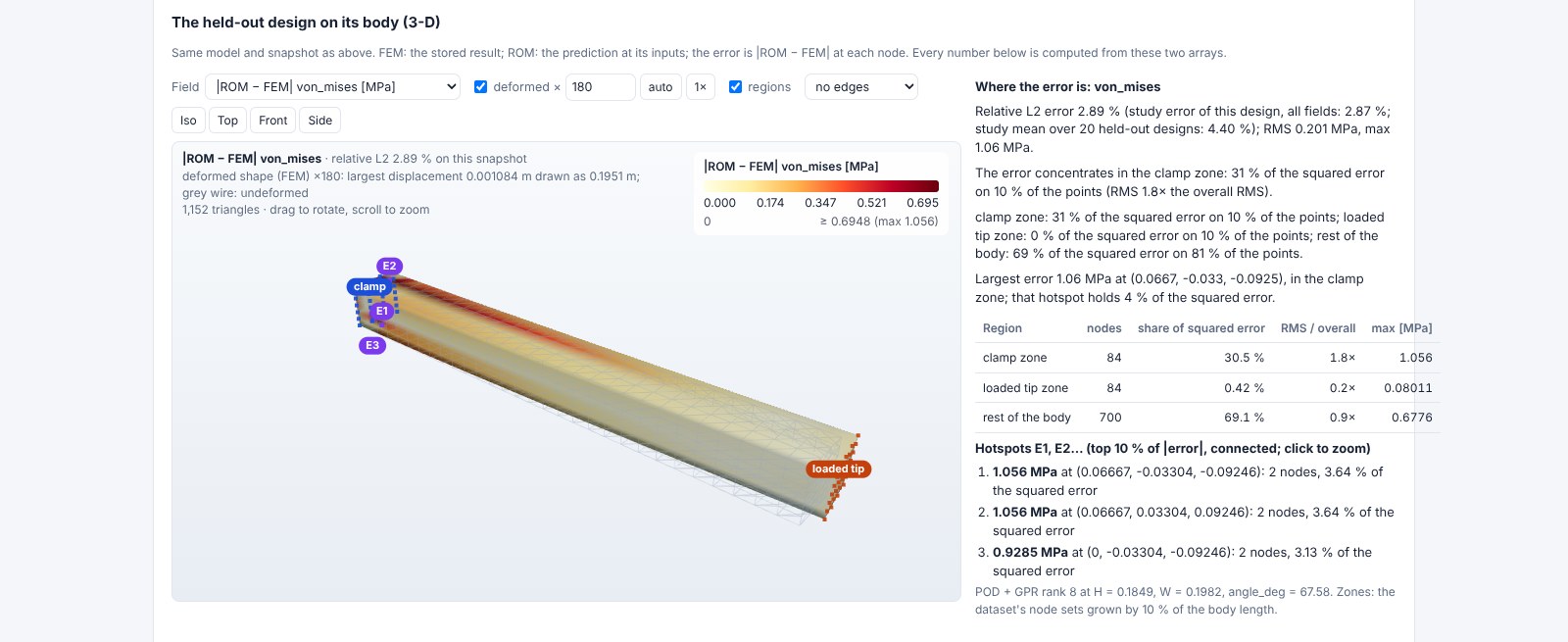

POD + GPR on a held-out cantilever: |ROM − FEM| of the von Mises stress on the deformed body, 31 % of the squared error in the clamp zone

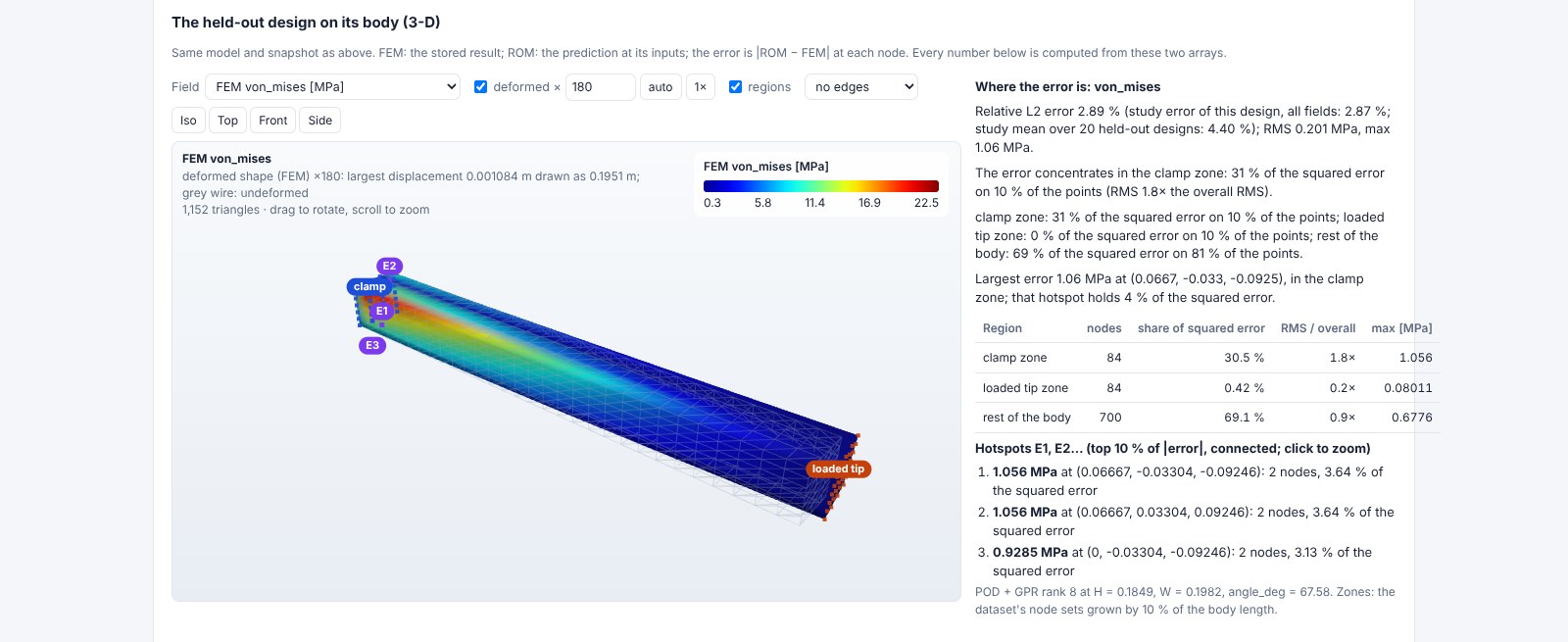

The FEM von Mises stress of the same design, on the same scale as the ROM's

Library: pinneapple_neural.architectures.rom.views.reconstruction_view, built on pinneapple_analysis.validation.error_map and pp.viz.field_view; the page uses the shared viewer apps/_shared/static/shared/fieldview3d.js.

Limits

Snapshots must share one mesh; time steppers need a uniform step and are not validated outside the training window; no physics check runs on the reduced fields (ModelRef.trust_decision = UNCHECKED). See the app README.
