Qualitative preview: physical impact of geometry changes before the numbers

pinneapple_design.qualitative (also pp.qualitative) answers the question an engineer asks before any simulation: given these geometries, or this change to one part, which way should the result move, how strongly, and why? It reads the geometry (closed triangulated bodies, or an Assembly of named parts), applies cheap physical models face by face, and returns for each variant:

  • the direction and strength of the change of the objective (negligible < 3 %, slight < 10 %, moderate < 30 %, strong);
  • the mechanisms that move it and by how much relative to each other (stagnation, separation, friction; leading edges, boundary-layer growth, the air heating up, fin efficiency, wake; flexibility near the clamp, mid-span or tip, mass);
  • the parts that contributed most;
  • side effects on the other quantities of the same physics (less drag but more lift; more cooling but more mass);
  • a confidence level with the reasons it is lowered (close to a separation angle, transition Reynolds number, merged boundary layers between fins, a section split into separate pieces, a short beam, a large extrapolation);
  • a surface map of where the physics happens (estimated Cp, local convection coefficient, bending stress).

Only then comes the quantitative step: quantify runs an accurate computation on the variants worth it and reports where the qualitative reading was right.

from pinneapple_design.qualitative import Assembly, part_sensitivity, preview

p = preview({"8 fins": sink8, "12 fins": sink12, "taller": sink_tall, "fins across the flow": sink_across},
            "maximizar dissipação de calor", conditions={"U": 2.0, "dT": 40, "base_part": "base"})
print(p.text())               # Portuguese by default; p.text(lang="en")
p.figure("preview.png")
print(part_sensitivity(sink8, "maximizar dissipação de calor", {"U": 2.0, "base_part": "base"}).text())
check = p.quantify(lambda name, geom: accurate_conductance(geom))     # CFD, FEM, pp.solve, test data...
print(check.text())          # expected vs computed, direction right?, rank correlation

Objectives are read from plain text in Portuguese or English ("minimizar arrasto", "more downforce", "aumentar rigidez por massa", "reduce the thermal resistance", "aumentar a primeira frequência") or given as (quantity, "min" | "max").

Models

model quantities physics
ExternalFlow drag, drag coefficient, lift, separated wake area modified Newtonian pressure on windward faces, pressure recovery on gently inclined leeward faces, base pressure beyond the separation angle and on faces sheltered behind others, flat-plate skin friction (Hoerner)
ConvectiveCooling heat rejected, thermal resistance, mean h, cooling time constant, mass local flat-plate laws from each part's leading edge, stagnation law on blunt faces, weaker exchange in separated or sheltered regions, natural convection (vertical plate), fin efficiency tanh(mL)/mL, air heating across the body (effectiveness-NTU)
Cantilever tip deflection, stiffness, max bending stress, safety factor, mass, stiffness per mass, first frequency non-uniform Euler-Bernoulli beam with section properties from a voxelization, Rayleigh quotient
ScalingModel any formula of the descriptors your own scaling law; changes are attributed to the descriptors that moved

Quantitative counterparts: pinneapple_design.qualitative.quantitative.voxel_fem_cantilever (3-D linear elasticity on the voxelized shape with incompatible-mode bricks: within 3 % of Timoshenko beam theory, no shear locking) and, for plate-fin heat sinks, the HeatSink Sizer physics (pinneapple_design.thermal.heatsink.engine.physics_resistance).

Three worked examples (examples/qualitative/)

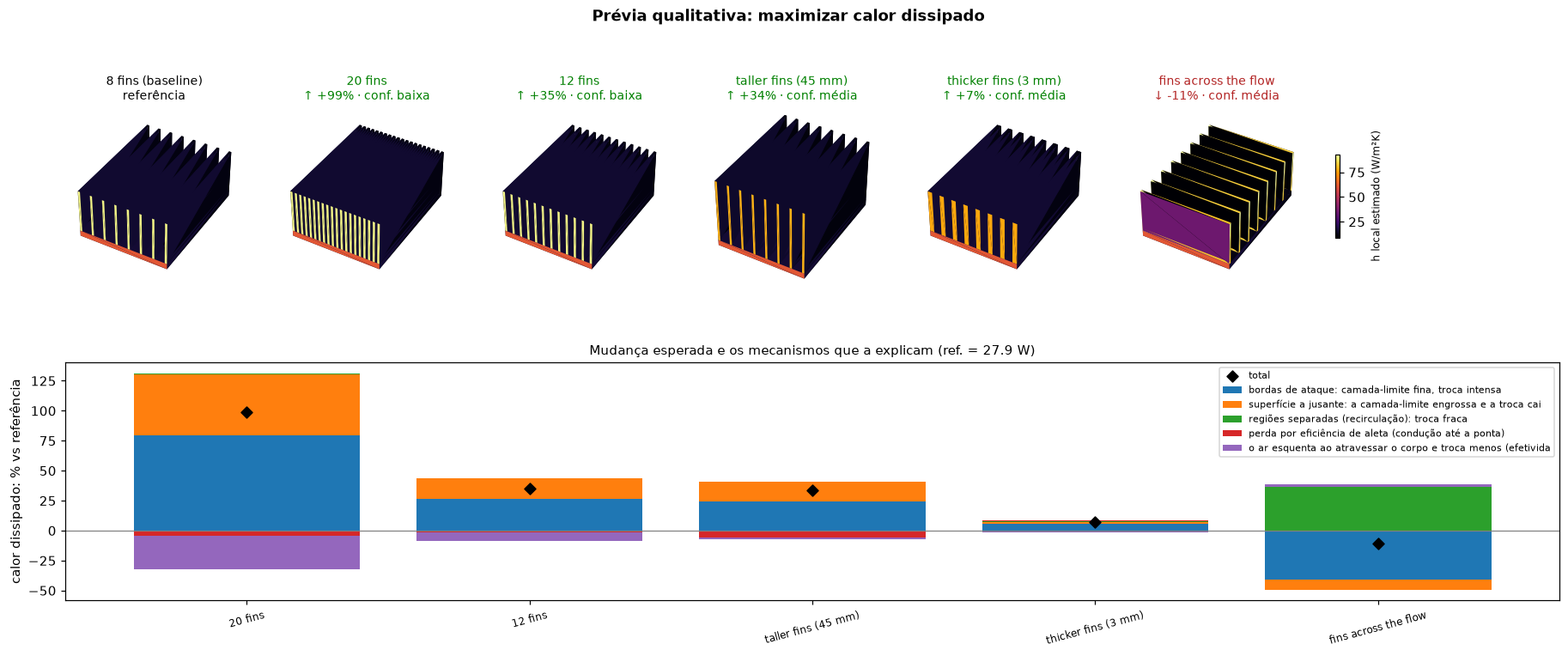

Heat-sink fins (01_heat_sink_fins.py): more fins, taller, thicker, and fins across the flow. The preview explains every gain through the leading edges and the boundary-layer growth and every loss through the air heating up and the fin efficiency; it flags the merged boundary layers between tight fins (lower confidence) and says the fins-across-the-flow design loses heat rejection, because the downstream fins sit in the wake, a case the quantitative tool cannot evaluate at all. Against the HeatSink Sizer physics: right direction for all variants, rank correlation 1.0 (it underestimates the gain of many fins, where its confidence was low).

heat sink preview

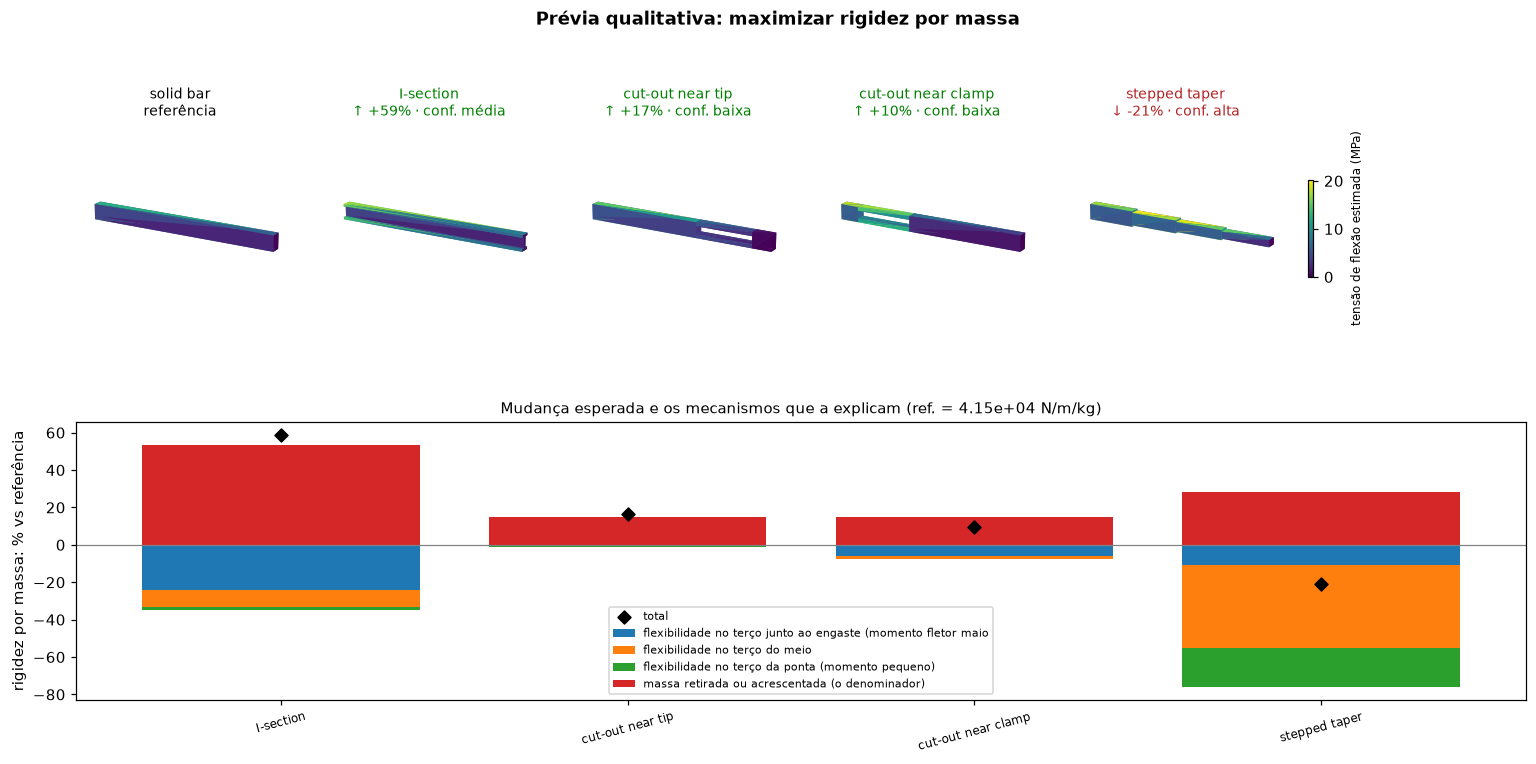

Beam stiffness per mass (02_beam_stiffness_per_mass.py): solid bar, I-section, stepped taper, cut-outs near the clamp or the tip, checked with the voxel FEM. Right for the I-section and the taper; wrong for the cut-outs, which beam theory treats as if the two strips acted as one section, and the preview had already given them low confidence for that reason.

beam preview

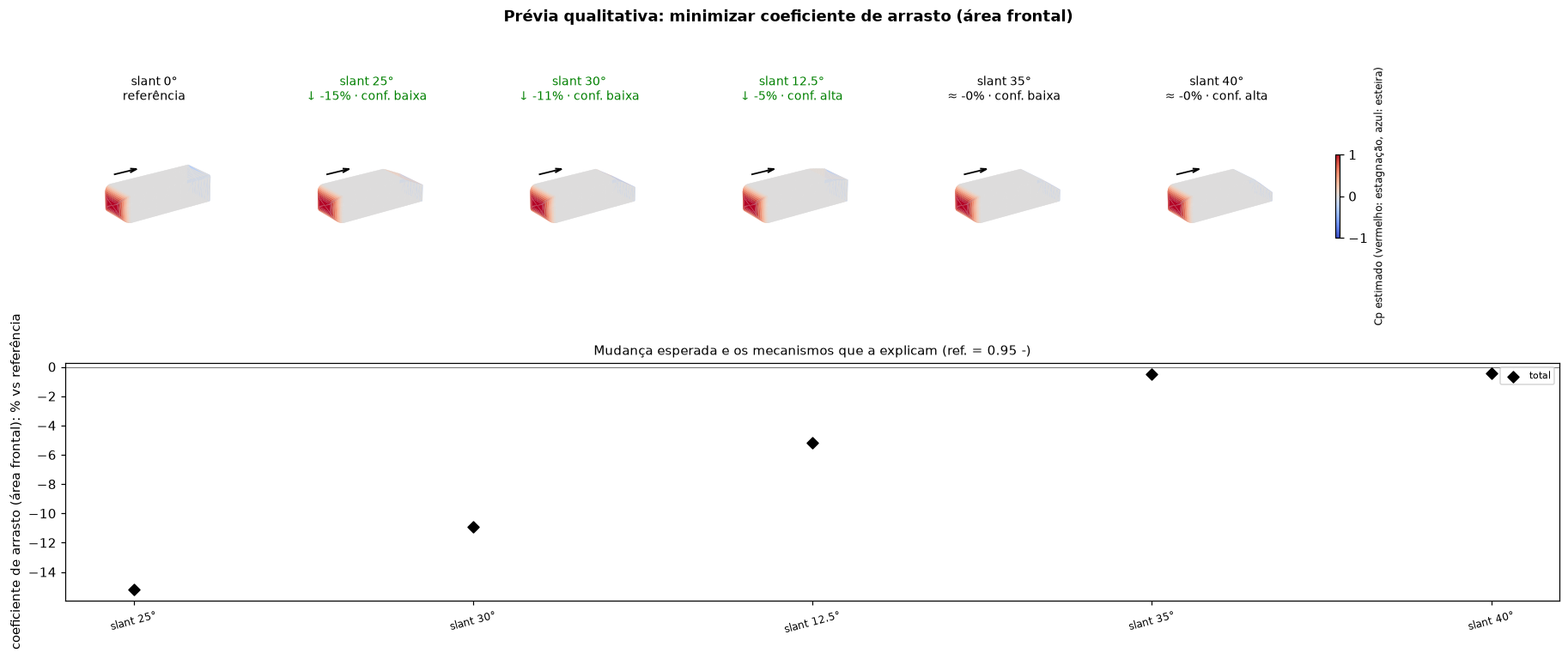

Ahmed body slant (03_ahmed_slant.py), against the wind-tunnel data of Ahmed et al. (1984): right below 20 degrees and above 35, wrong between 25 and 35, where longitudinal vortices that the model does not have raise the drag; again the confidence there was low. This is the point of the two steps: the qualitative preview is fast and explains, the quantitative check says when to stop trusting it.

ahmed preview

Limits

The models are order-of-magnitude physics for ranking and explanation, not design values. Not modelled: vortex systems and unsteady wakes, compressibility, channel-flow bypass in un-ducted heat sinks, shear deformation and composite action of split sections, buckling, contact. Each of these lowers the confidence where the geometry makes it likely, and the quantitative step is the arbiter.
