Lattice Boltzmann wind tunnel and the FluidX3D bridge

Two pieces, both under pinneapple_simulation:

Module What it is
numerical_solvers.lbm_tunnel A 3-D lattice Boltzmann solver written in PyTorch (CPU or GPU) for wind-tunnel cases: inlet, outlet, open sides, walls, moving walls, solid bodies from masks or STL files, and the force on them.
external_solvers.fluidx3d A bridge to FluidX3D (Moritz Lehmann's OpenCL LBM for GPUs): it writes a wind-tunnel main_setup() into your own FluidX3D checkout, builds and runs it, and reads back forces and .vtk fields.

The solver uses methods from the LBM literature that FluidX3D also uses. No FluidX3D code is copied or shipped:

  • D3Q19 and D3Q27 velocity sets;
  • SRT or TRT collision (TRT magic parameter 3/16), with optional Smagorinsky LES (Hou et al. 1996);
  • DDF shifting: the solver stores f − w instead of f, which keeps the 16-bit rounding error small (Lehmann et al. 2022);
  • FP16 storage (storage="fp16s"), which halves the memory of the distributions;
  • Guo forcing, split into its even and odd parts so that it is correct with TRT;
  • halfway bounce-back on solids, with the moving-wall term;
  • momentum-exchange force on bodies;
  • equilibrium inlet and open faces, and a zero-gradient outlet;
  • unit conversion between lattice units and SI (Units);
  • legacy VTK output that ParaView reads, and that FluidX3D's own exports share.

Quick start

from pinneapple_simulation.numerical_solvers.lbm_tunnel import WindTunnelLBM, Units, sphere

un = Units.from_si(lbm_length=8, lbm_velocity=0.05, lbm_rho=1,      # D = 2 cm sphere at 0.1 m/s
                   si_length=0.02, si_velocity=0.1, si_rho=1260)  # in a glycerol-water mix
lbm = WindTunnelLBM((96, 48, 48), nu=un.nu(1e-4), u_in=(0.05, 0, 0), storage="fp16s")
lbm.add_solid(sphere(lbm.shape, (24, 23.5, 23.5), 4))
lbm.run(3000)
Fx = un.si_F(lbm.force_on_solid()[0])          # drag in newtons
lbm.write_vtk("out/sphere")                     # sphere-u.vtk, sphere-rho.vtk, sphere-flags.vtk

Faces are set per side with faces={"x-": "inlet", "x+": "outlet", "y-": "open", ...}. Each side is one of inlet, outlet, open, wall, moving or periodic. The defaults are an inlet at x−, an outlet at x+, and open on the other four sides. voxelize_stl(trimesh_mesh, shape, center, size) turns an STL into a solid mask.

Validation

examples/lbm/01_sphere_wind_tunnel.py runs these cases (tests in tests/test_lbm_tunnel.py):

Case Result
Force-driven Poiseuille channel, SRT and TRT < 1 % from the parabola
Stokes drag on a sphere (Re ≈ 0.1), Stokes far field on the sides R = 5 cells: +2.6 %; R = 8 cells: +1.1 % against 6πρνRU
Sphere at Re = 20, D = 8 cells, 96 × 48 × 48 tunnel, FP32 Cd = 3.19; Schiller & Naumann (1933) gives 2.61 (+22 %)
Same, FP16 storage, half the memory (38 instead of 76 B/cell) Cd = 3.19, 0.05 % from FP32; velocity differs by at most 0.002 U

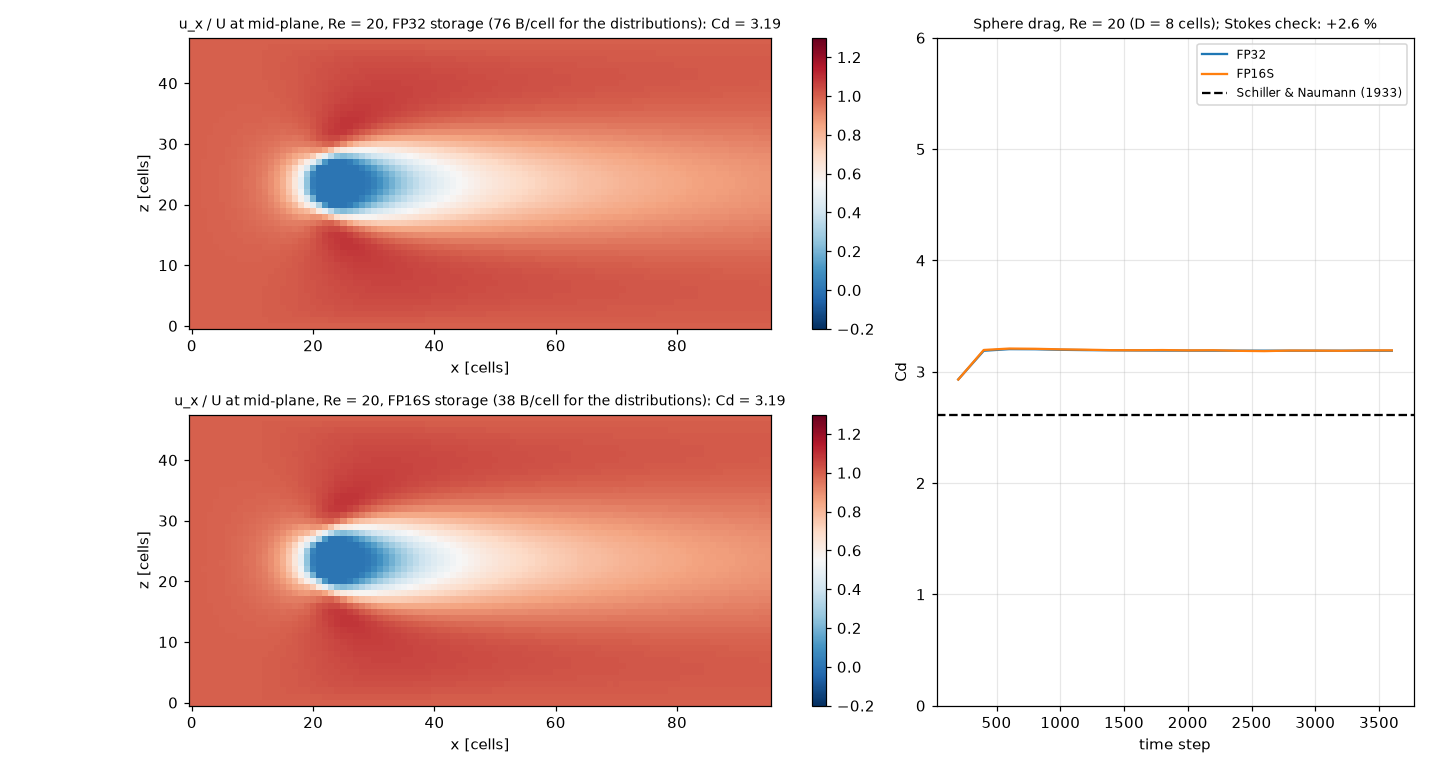

Sphere at Re = 20

The Re = 20 drag is 22 % above the correlation for two reasons. The sphere is only 8 cells across, so its surface is a staircase. The tunnel is only 6 diameters wide, and the open sides hold the free-stream velocity, which confines the flow; at low Re the disturbance reaches far, so this matters. The Stokes case shows the method converges with resolution (+2.6 % at R = 5, +1.1 % at R = 8). For numbers you report, use bodies of 20+ cells and a tunnel 15+ diameters wide. The example is sized to run in about an hour on 4 CPU cores. FP16 storage works when the flow moves at u ≳ 0.02 in lattice units. Far below that (u ≈ 0.005), the 16-bit rounding is a few percent of the velocity.

FluidX3D bridge

from pinneapple_simulation.external_solvers.fluidx3d import WindTunnelSetup, run_fluidx3d, read_results, results_to_samples

s = WindTunnelSetup(stl="stl/car.stl", length_m=4.5, velocity_m_s=30, nu_m2_s=1.5e-5, rho_kg_m3=1.2,
                    box=(1.0, 3.0, 0.75), memory_mb=2000, time_s=0.5, export_every_s=0.1, floor=True)
run_fluidx3d(s)                          # needs FLUIDX3D_HOME and an OpenCL device
res = read_results()                     # res["forces"]: (t, Fx, Fy, Fz) in N; res["fields"]["u"]["data"]
samples = results_to_samples(res)        # PhysicalSamples for training

write_setup backs up src/setup.cpp to setup.cpp.pinneapple.bak and replaces the active main_setup(). enable_features switches on the defines.hpp extensions the setup needs (EQUILIBRIUM_BOUNDARIES, FORCE_FIELD, VOLUME_FORCE, SUBGRID, MOVING_BOUNDARIES for a moving floor, FP16S) and comments out BENCHMARK. The generated setup uses only the API in FluidX3D's documentation. It has not been compiled against every FluidX3D version, so check the build log the first time.

License. FluidX3D is not open source in the OSI sense: its license allows public research, education and personal use, and forbids commercial and military use. PINNeAPPle does not download or bundle it. You clone it yourself and are responsible for using it within those terms. The PyTorch solver above is independent of FluidX3D and is covered by PINNeAPPle's own license.

Not implemented yet

The FluidX3D features this solver does not have yet are tracked in issue #473:

  • free surface (VOF-LBM);
  • esoteric-pull in-place streaming;
  • D2Q9 and D3Q15;
  • temperature;
  • particles and IBM;
  • multi-GPU domains;
  • ray-traced graphics.
