PhysicsNeMo trains, PINNeAPPle says when to trust

PhysicsNeMo trains the models. PINNeAPPle checks whether their predictions can be trusted, without the reference solution. The two complement each other: nothing below retrains or replaces a PhysicsNeMo model. The example is examples/vs_physicsnemo/07_physicsnemo_trains_pinneapple_checks.

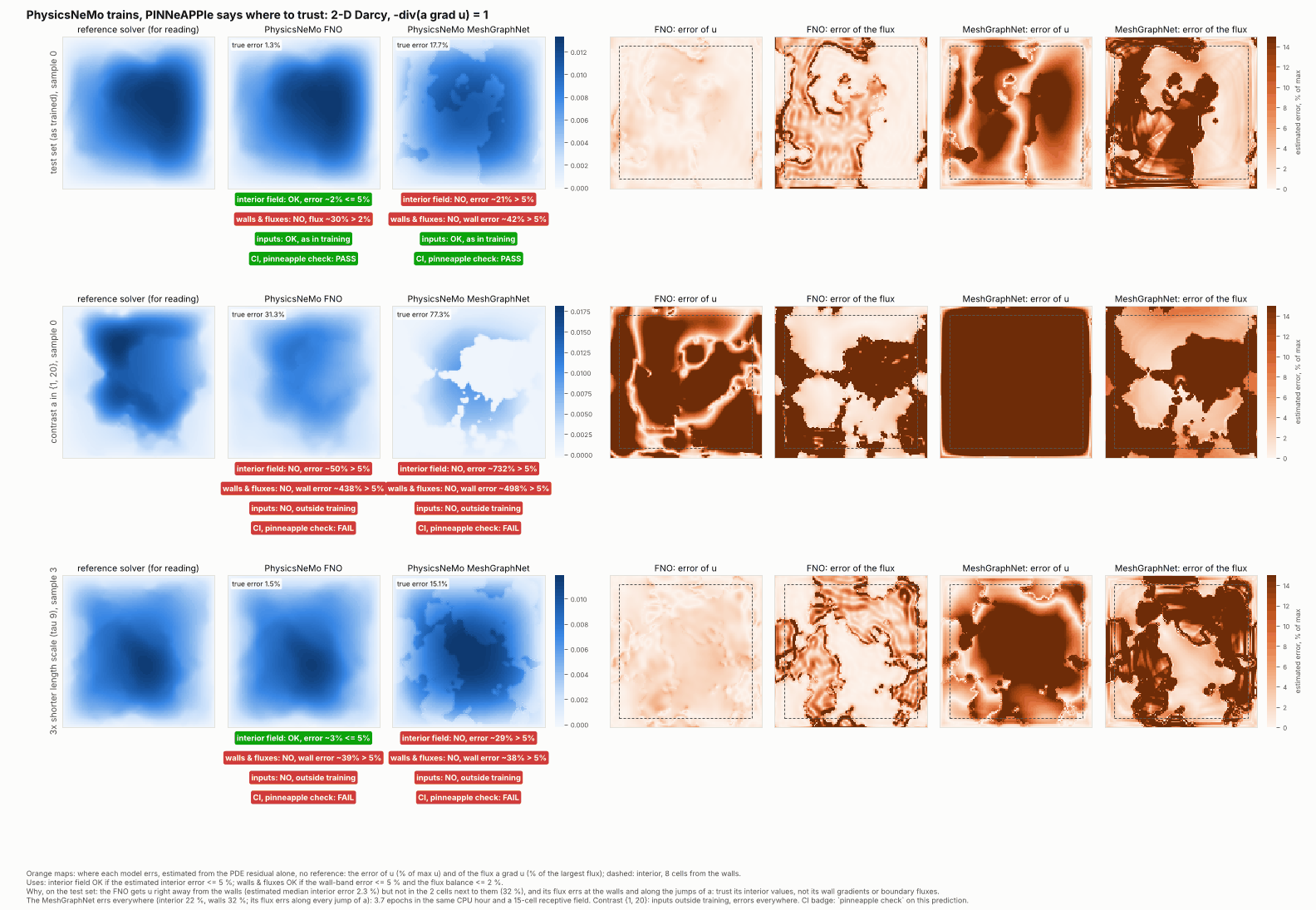

The animated version alternates the two exported samples of each regime: physicsnemo_darcy_trust.gif.

Where each model works, and why

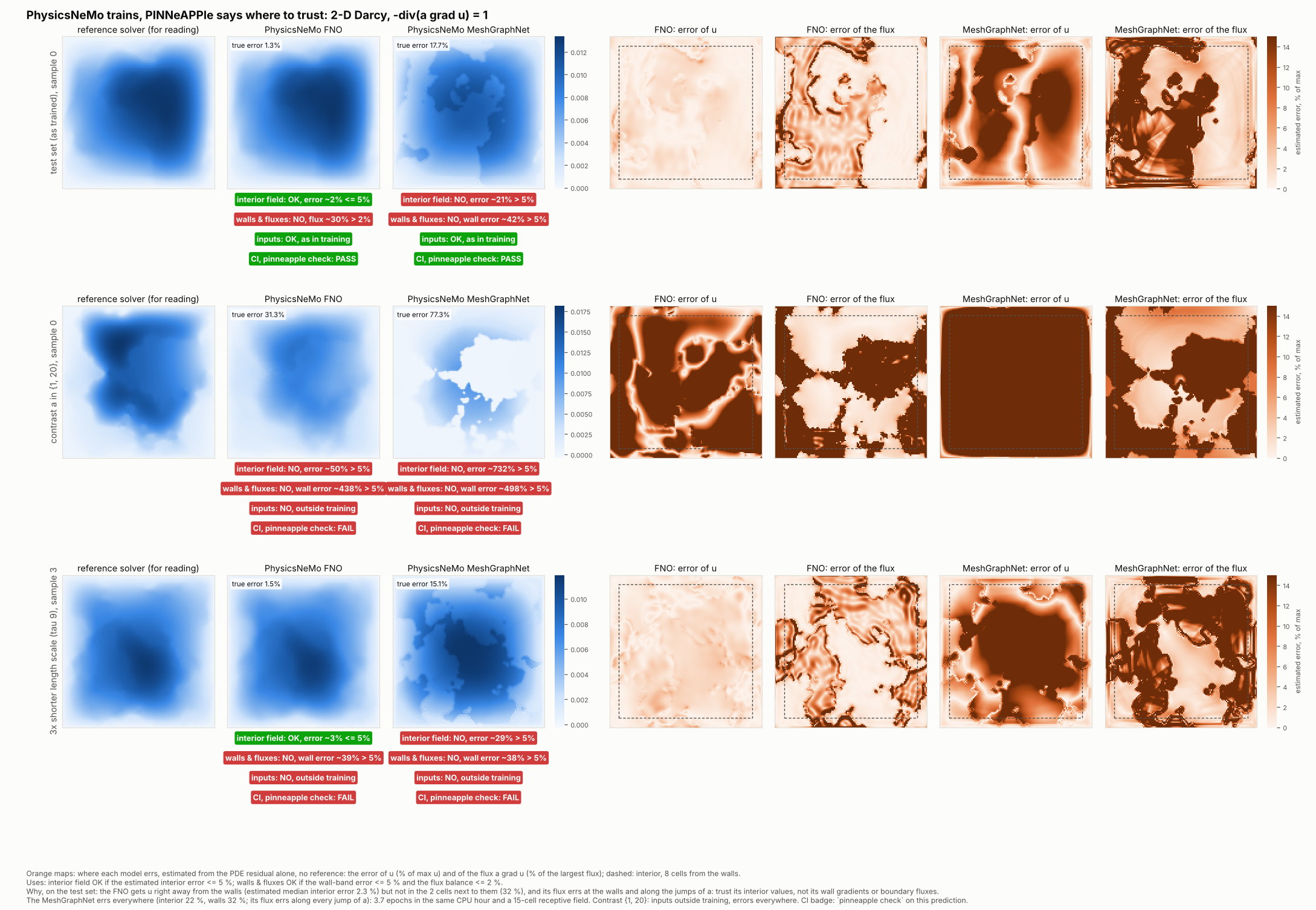

The orange maps show where each prediction errs, estimated from its PDE residual alone, with no reference: - estimated_error: the error of u; - estimated_flux_error: the error of the flux a grad u.

The badges under each prediction say which use it can serve (use_verdicts, limits fixed a priori): - interior field: values of u at least 8 cells from the walls, OK if the estimated interior error is ≤ 5 %; - walls & fluxes: values and gradients next to the walls and boundary flow rates, OK if the estimated error in the 2 cells next to the walls is ≤ 5 % and the flux balance is ≤ 2 %; - inputs: the coefficient inside the training envelope; - CI: what pinneapple check returns for that prediction.

Regime	Model	interior error, estimated / true (median)	wall-band error, estimated / true	interior field OK	walls & fluxes OK	inputs as in training
test set	FNO	2.3 % / 1.3 %	32 % / 19 %	99 % of samples	0 %	95 %
test set	MeshGraphNet	22 % / 15 %	32 % / 23 %	0 %	0 %	95 %
contrast	FNO	85 % / 41 %	392 % / 65 %	0 %	0 %	0 %
contrast	MeshGraphNet	688 % / 77 %	529 % / 81 %	0 %	0 %	0 %
length scale ÷3	FNO	3.1 % / 1.6 %	34 % / 21 %	94 %	0 %	61 %
length scale ÷3	MeshGraphNet	21 % / 15 %	37 % / 28 %	0 %	0 %	61 %

• FNO: use it for the field away from the walls, not for wall gradients or boundary fluxes. Its error is about 1 % in the interior and about 20 % in the 2 cells next to the walls. Its flux also errs along the jumps of a. The net outflow it implies is off by 14 % (median) against the reference. This holds for the shorter length scale too: the interior is still about 2 %, although 39 % of those coefficients are outside the training envelope.
• MeshGraphNet: not usable at this budget, for fields or for fluxes. Its error is spread over the whole domain, and its flux errs along every jump of a. In the same CPU hour it did 3.7 epochs (the FNO did 41), and its 15 message-passing steps reach 15 cells of a 128-cell grid, which is little for an elliptic problem.
• Contrast {1, 20}: neither model. The inputs are outside training, and the error is large everywhere.

How much to trust the estimate. It is not a certificate: - It tracks the true error map; correlation 0.79 (FNO) and 0.85 (MeshGraphNet) on the test set. - It over-estimates by 1.4 to 2.7× (the certified bounds below are the guarantee). - Its use verdicts agree with the same verdicts computed from the true error on 94 to 100 % of the samples in every regime. Every disagreement is conservative: 6 % of the FNO's length-scale samples, and 1 % of its test samples, are called "not OK" in the interior although they are.

Set-up

Problem	-div(a grad u) = 1 on the unit square, u = 0 on the boundary, a ∈ {3, 12} (Li et al. 2021)
Data	zoo dataset darcy_2d_li2021: 1000 train / 200 test pairs on 128 × 128 cells, each solved on 512² and averaged
Models	PhysicsNeMo 2.2.2 FNO (4 layers, 12 modes, width 32, 2.37 M parameters) and MeshGraphNet on the 128 × 128 grid graph (15 message-passing steps, hidden 32, 0.15 M parameters; PyTorch Geometric)
Budget	ComputeBudget(wall_s=3600) each, 4 CPU threads (Xeon 2.8 GHz), Adam, cosine learning rate, relative L2 loss
Training reached	FNO 5144 steps = 41 epochs (train loss 0.012); MeshGraphNet 1828 steps = 3.7 epochs (train loss 0.15)
Regimes	test split (100 samples for calibration, 100 for evaluation); contrast a ∈ {1, 20}; length scale 3× shorter (tau = 9), 100 samples each, solved with the same reference solver (operator_datasets.darcy_set)
Time	data 4 min, training 2 × 60 min, evaluation 5 min, checks 2 ms per sample

The checks (no reference solution)

pinneapple_physics.darcy_checks uses the reference solver's own discretisation: cell-centred finite volumes, harmonic-mean faces and half-cell Dirichlet faces. The solver's solution passes every check to round-off.

Check	What it measures
energy bound	residual_error_bound: ‖r‖ in the dual norm of the constant-coefficient operator (one fast sine transform), over √min a and ‖u‖_A. A guaranteed upper bound on the relative energy-norm error, i.e. the error of the flux field a grad u, against the discrete solution.
L2 bound	residual_l2_bound: the same certificate through the discrete Poincaré inequality. A guaranteed upper bound on the relative L2 error of u itself.
boundary condition	RMS of u extrapolated to the boundary, over max |u|
flux balance	|net outward flux − ∫f| / ∫f
positivity	most negative u / max |u| (maximum principle)
inputs	a inside the training envelope: values, contrast, high fraction, interface density (CoefficientEnvelope)

Use profiles (PROFILES). The limits are the library's fixed engineering tolerances, grouped by the quantity a use depends on, each with its reason in the code. None was chosen from a model's values.

Profile	For	Limits (reason)
fields	maps and point values of u	L2 bound ≤ 0.05 (the 5 % the library applies to a reference comparison); u = 0 ≤ 0.02 (Dirichlet tolerance of pp.trust_card); positivity ≤ 0.01 (its max-principle tolerance)
fluxes	boundary flow rates, wall gradients, Darcy velocity	energy bound ≤ 0.10; flux balance ≤ 0.02 (the reference solver reaches 0.01)

Each profile verdict is over the batch (90th percentile of each metric), with the graded ratio value / limit of the worst metric: 1 is at the limit. vs validation (calibrate_tolerances) compares the same metrics with the model's own 99th percentiles on the 100 held-out in-distribution calibration inputs. Only inputs are needed, never labels. This layer is a drift monitor: it says whether the model is less physical here than where it was validated. inputs is the envelope check.

Certified checks: use profiles (strict)

Regime	Model	rel. L2 (median)	fields: verdict, ratio (worst metric value / limit)	fluxes: verdict, ratio (worst metric value / limit)	vs validation	inputs
test set	FNO	1.4 %	REJECT, 9.5× (L2 bound 0.48 / 0.05)	REJECT, 18× (flux 0.36 / 0.02)	APPROVED	APPROVED
test set	MeshGraphNet	15.3 %	REJECT, 44× (L2 bound 2.2 / 0.05)	REJECT, 11× (energy bound 1.07 / 0.10)	APPROVED	APPROVED
contrast	FNO	40.9 %	REJECT, 211×	REJECT, 148× (flux 2.95)	REJECT	REJECT
contrast	MeshGraphNet	76.8 %	REJECT, 467×	REJECT, 27× (energy bound 2.69)	REJECT	REJECT
length scale ÷3	FNO	1.8 %	REJECT, 12×	REJECT, 20× (flux 0.40)	REJECT (marginal)	REJECT (39 % outside)
length scale ÷3	MeshGraphNet	15.0 %	REJECT, 53×	REJECT, 12× (flux 0.23)	REJECT (marginal)	REJECT (39 % outside)
test set	reference solver	—	APPROVED, 0.71×	APPROVED, 0.48×	—	—
contrast	reference solver	—	REJECT, 4.0×	APPROVED, 0.90×	—	—

The profiles judge the whole field with guaranteed bounds, so they are strict. They answer "can this prediction be certified for this use as a whole?"; the section above answers "where can it be used?". What this shows:

1. Neither model meets the engineering limits of either profile at this 60-minute CPU budget. The physics layer does not separate the two models by verdict; it grades them. On fields the FNO is 4.6× closer (9.5× against 44× the limit). On fluxes the MeshGraphNet is 1.7× closer (11× against 18×): its flux balance (0.21) is better than the FNO's (0.36), although its L2 error is 10× larger.
2. The FNO is the better model at equal budget by error. On CPU it does 11× more epochs per hour (41 against 3.7) and ends with a 10× smaller test error. The MeshGraphNet is undertrained. With 15 message-passing steps it also sees at most 15 cells in each direction on a 128-cell grid, which is little for an elliptic problem.
3. A 1.4 % L2 error can still have a 22 % flux error. The FNO's predicted net outflow differs from the reference solver's by 22 % (median over the first 40 test samples, 42 % at p90). Its relative error in the two cells next to the walls is 19 %, against 1.7 % inside. Its true energy-norm error is 18 %, and the bound gives 29 %. 58 % of its test predictions go below −1 % of their maximum near the walls. The fluxes profile rejects it for a reason the reference confirms.
4. The fields certificate is conservative. The certified L2 bound is about 30× the FNO's true L2 error (median 0.41 against 0.014) and 12× the MeshGraphNet's. For the contrast regime (min a = 1) even the reference solver's own solution fails it (4× the limit). A field-map use therefore cannot be approved by this certificate alone at these limits. The energy bound is much tighter (1.7× the true energy error for the FNO).
5. Out of distribution, the label-free checks see the degradation. For contrast {1, 20} the FNO's ratios grow from 9.5× / 18× to 211× / 148×, while its error goes from 1.4 % to 41 %. The drift and input layers reject, for both models.
6. A shorter length scale degrades the models moderately, and the drift layer flags it only just. The true energy-norm error rises by about 25 % for both models (FNO 0.167 → 0.208, MeshGraphNet 0.86 → 1.09). The FNO's L2 error rises from 1.4 % to 1.8 %; the MeshGraphNet's does not change. The drift monitor fails on the residual bound for 11 % (FNO) and 34 % (MeshGraphNet) of the samples, so the batch verdict is a marginal REJECT. The input envelope flags 39 % of these coefficients (interface density), a conservative alarm given how little the FNO degrades.
7. Cost. On this CPU the reference finite-volume solve at 128² takes 0.07 s. FNO inference takes 0.037 s per sample and MeshGraphNet 0.55 s. For a 2-D problem this size the surrogates' speed advantage is small; the case is here to show the trust layer, not to argue for surrogates.

In CI: pinneapple check and the GitHub Action

run.py evaluate exports two predictions per model and regime (check/predictions/) and the configuration (check/pinneapple-check.toml, written with darcy_checks.check_config_entry). Each target declares: - physics = "darcy"; - bounds and envelope of a: the training coefficients (CoefficientEnvelope.to_check_config); - as tolerances, its model's validated limits.

pinneapple check runs darcy_checks.sample_checks on each prediction: PC301 (energy and L2 bounds), PC101 (flux), PC201 (u = 0), PC402 (positivity), PC401 (envelope). The verdicts shown in the figure come from the same function, on the same files. Exported samples: - test and contrast sets: the first two; - length-scale set: the first one outside the envelope (_0, sample 3) and the first one inside it (_1, sample 0).

pinneapple check --config check/pinneapple-check.toml check/predictions/in_distribution \
    check/predictions/length_scale/fno_1.npz check/predictions/length_scale/meshgraphnet_1.npz   # exit 0
pinneapple check --config check/pinneapple-check.toml check/predictions/contrast \
    check/predictions/length_scale/fno_0.npz check/predictions/length_scale/meshgraphnet_0.npz   # exit 1
#   contrast: PC301, PC201, PC401 on all four; PC402 on both FNO samples; PC101 on two
#   length scale _0: PC401 (interface density outside the envelope); MeshGraphNet also PC301 (L2 bound)

The darcy-trust job of .github/workflows/physics-check.yml runs the action on both sets: - the in-range set must pass; - the out-of-range set must break exactly the rules in check/expected.json. In this repository the job asserts them, so CI stays green; in a user's repository, with fail-on: error, that set turns the check red.

With the default tolerances (the fixed limits) every prediction of both models fails PC101 and PC301, as in the table above.

Checking data, not only models: PhysicsNeMo's Darcy2D datapipe

The same kind of checks can run on training data before anyone trains on them. Two open issues on that datapipe are already acknowledged by NVIDIA, with a fix under review in NVIDIA/physicsnemo#2048: #2036 (the Jacobi kernel divides grad k · grad u by 2 dx instead of 4 dx²) and #2035 (the Fourier coefficients of a permeability sample share one random value). The installed version, nvidia-physicsnemo 2.2.2, still has the 2 dx denominator, so it does not include that fix.

The datapipe stores u at the nodes of a finite-difference grid with zero ghost nodes and a one-node crop, not in the cell-centred layout of darcy_2d_li2021. So the residual is computed by check_nodal_darcy_batch in the datapipe's own layout, against a direct solve of the documented equation on the same nodes. Applied to node data, the cell-centred physics check of the dataset audit also fails a correct direct solve (solve error 16 %), so it cannot separate the bug from the layout there. Its diversity measures (near_duplicates, effective_sample_count) are used as they are.

python run.py datapipe: resolution 64, 4 batches of 32 on CPU (warp 1.18), 80 s.

Check	Datapipe data	Direct solve of the documented equation, same nodes
residual of -div(k grad u) = 1 (relative RMS, median)	4.44	1.7e-13
same data, stencil with grad k · grad u over 2 dx	0.0036 (the Jacobi tolerance)	—
distance to the direct solve (relative L2)	24 %	—
flux balance (median; limit 2× the direct solve's floor, 0.061)	0.42, fails for every sample	0.020
boundary condition, positivity	pass	pass
permeability samples	4 distinct of 128: every sample is an exact copy of others in its batch; effective sample count 1.8	—
Fourier amplitudes per sample	4 distinct of 100 (one per sin/cos family)	—

Each run draws new seeds. Over three runs the residual was 4.4 to 5.0 and the flux imbalance 0.22 to 0.68; in one run, half the samples stayed under the flux limit.

• #2036: the residual check catches it without ambiguity. The data solve the shipped stencil, not the documented equation.
• #2035: the diversity check catches it. The issue reports 8 distinct fields in 32 on its set-up; in these CPU runs every sample of a batch was identical.
• Not caught: the boundary and positivity checks, as expected, do not see either problem.

In a Veriphysics Evidence Report: scope of use

An approve / reject verdict says whether to use a result, not for what. python run.py report writes a Decision Record and an Evidence Report PDF per model with a scope of use (pinneapple_veriphysics.scope): each use with its verdict over the test set, the share of samples that serve it, the median measured value against the limit, what the use needs, and the kind of evidence. The input check is a precondition of every use. The shifted regimes are notes, and the figure above is embedded in the PDF. For the FNO:

Scope of use -- PhysicsNeMo FNO, test set
  use for: interior field; not for: walls and fluxes; preconditions met
  - [USABLE] interior field (99 % of samples): median interior 2.3 % (limit 5 %) [estimated]
  - [NOT USABLE] walls and fluxes (0 % of samples): median wall 31.9 % (limit 5 %), median flux 13.3 % (limit 2 %) [estimated]
  - [MET] inputs (95 % of samples): 95 % of samples OK [input check]
  note: PhysicsNeMo FNO, contrast a in {1, 20}: not for: interior field, walls and fluxes; precondition not met: inputs
  note: PhysicsNeMo FNO, 3x shorter length scale (tau 9): use for: interior field; not for: walls and fluxes; precondition not met: inputs

The MeshGraphNet record reads "not for: interior field, walls and fluxes; preconditions met". The use verdicts are estimated (no guarantee); the record says how the estimate was validated on this case. The certified profiles stay in the reasoning line (both models REJECT fields and fluxes on the test set).

Limits

• One problem (2-D Darcy, constant source) and one seed per model. The MeshGraphNet configuration was reduced to fit a CPU budget; at PhysicsNeMo's default width (128) one hour on this CPU gives under one epoch.
• The bounds are about the discrete 128² problem; the dataset's own averaging leaves a floor (energy bound 0.02 to 0.09). The certified L2 bound is loose (about 30× the true error for the FNO), so the fields profile is strict.
• The drift limits come from 100 calibration inputs; the length-scale result sits at their edge.
• Fixed limits are engineering choices, set before training and not tuned afterwards.
