Parameter Identifiability Lab (day 25)

Before estimating parameters, check that the measurements can determine them. Live at https://identifiability.pinneapple.org. Source: apps/identifiability_lab.

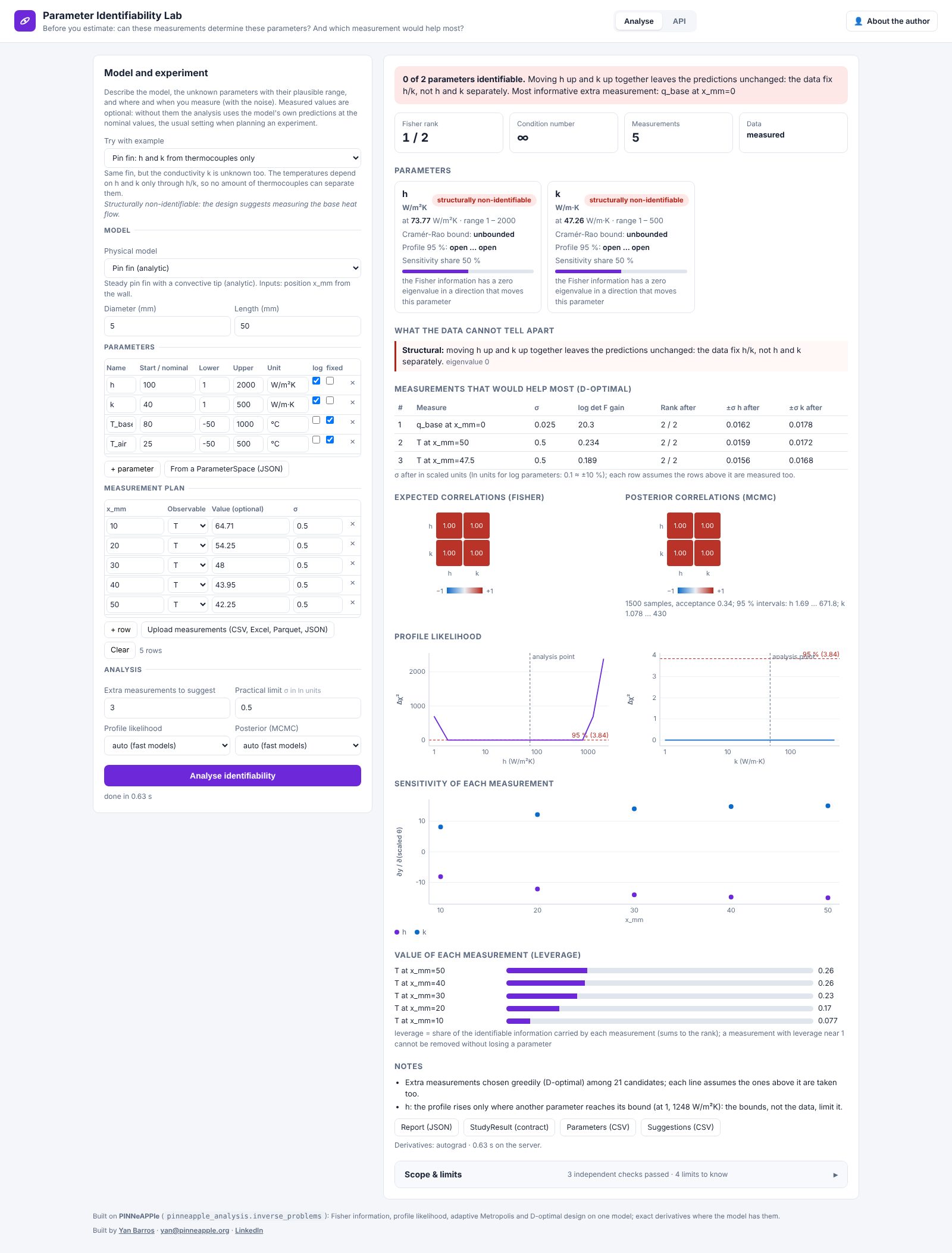

Pin fin with h and k unknown: only h/k is determined, and the design asks for the base heat flow

Describe a model, the unknown parameters with their plausible range, and the measurement plan (where, when, which observable, with what noise). The lab answers four questions on the same problem:

Question Method
Can any data of this kind determine each parameter? Rank of the Fisher information; its null directions are the ambiguities, reported with the combination the data do fix (for example h/k)
Can these data determine it, and how precisely? Cramér-Rao bounds and the profile likelihood (95 % interval, open or closed)
How are the estimates coupled? Expected correlations (Fisher) and posterior correlations (adaptive Metropolis)
What should I measure next? Leverage of each measurement, and the greedy D-optimal extra measurements, with the rank and bounds each would give

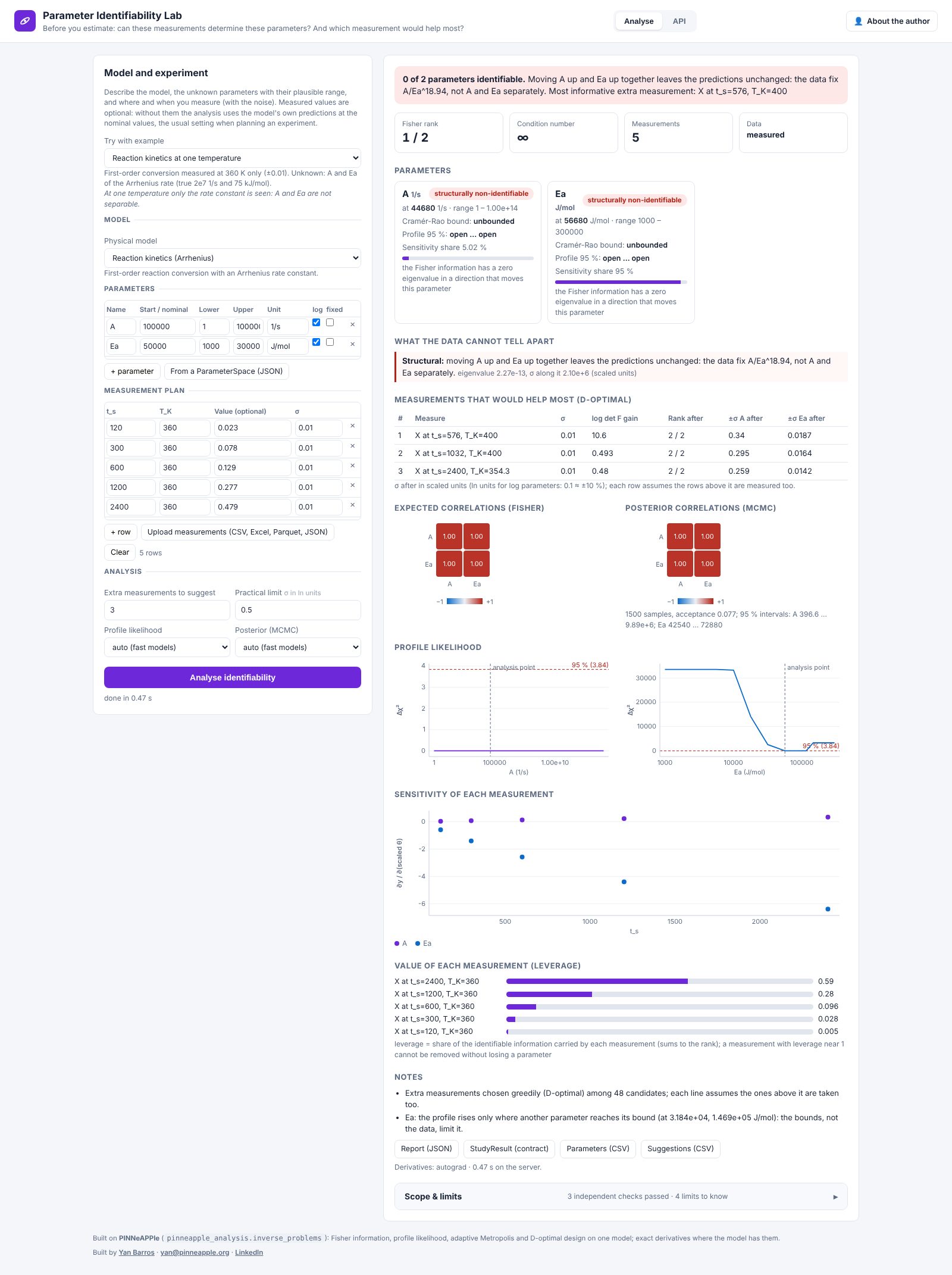

Kinetics at one temperature: A and Ea are not separable until a run at another temperature

The result downloads as a report (JSON), as CSV tables, and as a StudyResult contract (study_type="identifiability"). The Model Calibration Lab and the Inverse Model Studio read that contract, and call the same core to decide which parameters get a confidence interval.

Automate it

curl -X POST https://identifiability.pinneapple.org/api/analyze -H 'Content-Type: application/json' -d @problem.json
curl https://identifiability.pinneapple.org/api/jobs/<id>           # status, progress, the report

The same analysis in Python: pinneapple_analysis.inverse_problems.analyze_identifiability. See the guide Identifiability, calibration and inverse problems.

Limits

The verdict is local: it holds at the analysis point and within the bounds given. It assumes the model form is right and the noise is independent and Gaussian. The profile and the posterior run only for fast models with at most 6 parameters. The app README lists every limit.
